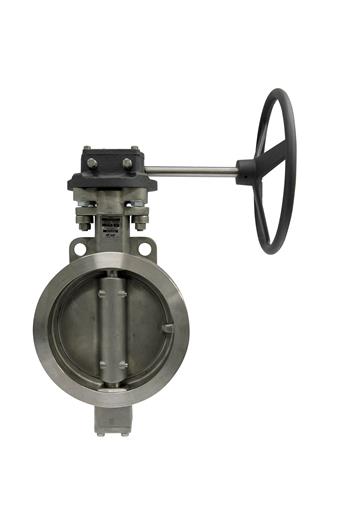

Apollo Class 300 Stainless Steel Butterfly Valve with Stainless Steel Disc, 17-4 PH SS Stem & Pin, RTFM Seats, Standard Service, Worm Gear Operator (2 x Wafer Type)

code

size

dimensions

weight

packaging

gtin

code

230W02SSP8TA2

size

2" (DN50)

dimensions

-

weight

7.88 kg

packaging

carton (1 pce)

gtin

00670750312816

code

230W25SSP8TA2

size

2-1/2" (DN65)

dimensions

-

weight

9.02 kg

packaging

carton (1 pce)

gtin

00670750310263

code

230W03SSP8TA2

size

3" (DN80)

dimensions

-

weight

9.32 kg

packaging

carton (1 pce)

gtin

00670750314308

code

230W04SSP8TA2

size

4" (DN100)

dimensions

-

weight

11.88 kg

packaging

carton (1 pce)

gtin

00670750283390

code

230W05SSP8TA2

size

5" (DN125)

dimensions

-

weight

17.19 kg

packaging

carton (1 pce)

gtin

00670750329869

code

230W06SSP8TA2

size

6" (DN150)

dimensions

-

weight

20.41 kg

packaging

carton (1 pce)

gtin

00670750283475

code

230W08SSP8TA2

size

8" (DN200)

dimensions

-

weight

37.23 kg

packaging

carton (1 pce)

gtin

00670750096518

code

230W10SSP8TA2

size

10" (DN250)

dimensions

-

weight

53.91 kg

packaging

carton (1 pce)

gtin

00670750096525

code

230W14SSP8TA2

size

14" (DN350)

dimensions

-

weight

119.88 kg

packaging

carton (1 pce)

gtin

00670750096549

code

230W18SSP8TA2

size

18" (DN450)

dimensions

-

weight

237 kg

packaging

carton (1 pce)

gtin

00670750096563

code

230W24SSP8TA2

size

24" (DN600)

dimensions

-

weight

453.09 kg

packaging

carton (1 pce)

gtin

00670750096587

code

size

DN1

DN2

n2

k2

d2-2

D2

code

230W02SSP8TA2

size

2" (DN50)

DN1

DN50

DN2

DN50

n2

8

k2

127

d2-2

19.05

D2

165.1

code

230W25SSP8TA2

size

2-1/2" (DN65)

DN1

DN65

DN2

DN65

n2

8

k2

149.35

d2-2

22.35

D2

190.5

code

230W03SSP8TA2

size

3" (DN80)

DN1

DN80

DN2

DN80

n2

8

k2

168.15

d2-2

22.35

D2

209.55

code

230W04SSP8TA2

size

4" (DN100)

DN1

DN100

DN2

DN100

n2

8

k2

200.15

d2-2

22.35

D2

254

code

230W05SSP8TA2

size

5" (DN125)

DN1

DN125

DN2

DN125

n2

8

k2

216

d2-2

22

D2

235

code

230W06SSP8TA2

size

6" (DN150)

DN1

DN150

DN2

DN150

n2

12

k2

269.75

d2-2

22.35

D2

317.5

code

230W08SSP8TA2

size

8" (DN200)

DN1

DN200

DN2

DN200

n2

12

k2

330.2

d2-2

25.4

D2

381

code

230W10SSP8TA2

size

10" (DN250)

DN1

DN250

DN2

DN250

n2

16

k2

387.35

d2-2

28.7

D2

444.5

code

230W14SSP8TA2

size

14" (DN350)

DN1

DN350

DN2

DN350

n2

20

k2

476

d2-2

32

D2

514.5

code

230W18SSP8TA2

size

18" (DN450)

DN1

DN450

DN2

DN450

n2

24

k2

578

d2-2

35

D2

628.5

code

230W24SSP8TA2

size

24" (DN600)

DN1

DN600

DN2

DN600

n2

24

k2

749.6

d2-2

41

D2

843

product info

item

Apollo Class 300 Stainless Steel Butterfly Valve with Stainless Steel Disc, 17-4 PH SS Stem & Pin, RTFM Seats, Standard Service, Worm Gear Operator (2 x Wafer Type)

item number with gtin

230WX0SSP8TA2

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

weight

453.09 kg

characteristics

color

silver

materials

stainless steel (ASTM A351 CF8M)

finishing

none

connection type

wafer type

technical

max operating pressure liquid

49.64 bar

general

product group

valves (butterfly valves)

ETIM class

EC010910 Butterfly valve

brand

Apollo

series

230L 230W Series Butterfly Valves

type

230WX0SSP8TA2

UNSPS

40141620

image | png

230W Image

certifications | pdf

CRN_0C17459

diagram | png

230L/W Diagram

submittal sheet | pdf

230L/W Submittal Sheet

installation- & maintenance document | pdf

230L_W Installation Instructions

Other Attachments | pdf

230L/W Kit Listing

label

value

label

etim-class

value

EC010910 Butterfly valve

label

Housing material

value

Stainless steel

label

Surface protection

value

Untreated

label

Connections

value

Wafer type

label

Operation

value

Worm gearbox

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
