group: 3210X63

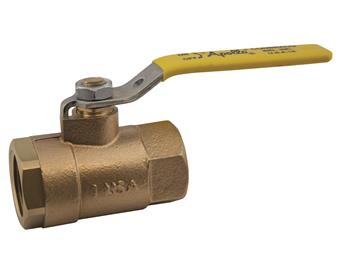

The Apollo Valves 32-100 Series is an economy NPT threaded regular port bronze ball valve featuring a proven ASTM grade cast bronze body for durability and superior corrosion resistance.
heating
cooling
steam
commercial building
CRN
item number
size
dimensions
weight
packaging
gtin
item number
size
1/2" (DN15)
dimensions
-
weight
0.42 lb
packaging
carton (1 pce)
gtin
00670750176975
item number
size
3/4" (DN20)
dimensions
-
weight
0.72 lb
packaging
carton (1 pce)
gtin
00670750176982
item number
size
1" (DN25)
dimensions
-
weight
1.39 lb
packaging
carton (1 pce)
gtin
00670750177002
color
yellow, bronze
materials
bronze (ASTM B584-C84400)
finishing
none
shape
straight
connection type
FPT - female thread conical (NPT)
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
brand
Apollo
series
32 Series Ball Valves
type
3210X63
UNSPS
40141607
max operating pressure liquid
27.58 bar
label
value
label
ETIM class
value
label
Housing material
value
Bronze
label
Surface protection housing
value
None
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Connection 1
value
Internal thread conical (NPT)
label
Connection 2
value
Internal thread conical (NPT)
label
With filter
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
