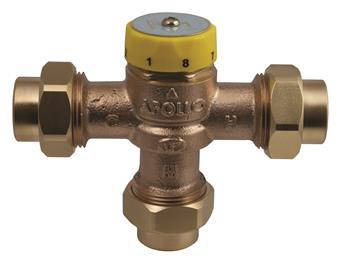

Apollo Lead Free Bronze Thermostatic Mixing Valve (3 x Push)

Product Image for Apollo Lead Free Bronze Thermostatic Mixing Valve (3 x Push)
Product Image for Apollo Lead Free Bronze Thermostatic Mixing Valve (3 x Push)

group: 34ALF21XP

The Apollo 34ALF Series Thermostatic Master Mixing Valves are designed for ASSE 1017 “Point of Source” approved applications. They provide hot water temperature control of potable and non-potable hot water distribution systems. The valves are built using lead Free* materials and are available with a variety of options and end connections.
  • Superior Thermostatic Element Technology For Optimal Performance, Reliability and Accuracy
  • Integral Inlet Strainers and Check Valves are Standard to Protect Against Cross-Flow and Foreign Particles in the Piping System
  • Thermostat Over-Temperature Control
  • Fingertip Temperature Control
  • Cold or Hot Water Supply Failure Shut-Off Protection
  • Multiple Connection Options to Fit Your Specific Needs
  • Lead Free Construction Certified: 0.25% Lead Max
  • Made in USA - ARRA Compliant



read more
read less

applications

heating

heating

show all
show less

segments

commercial building

commercial building

show all
show less

approvals

NSF

NSF

show all
show less

item number

size

dimensions

weight

packaging

gtin

item number

34ALF214P

size

3/4" (DN20)

dimensions

-

weight

3.08 lb

packaging

carton (1 pce)

gtin

00670750571091

item number

size

item number

34ALF214P

size

3/4" (DN20)

technical drawing for product

characteristics

materials

bronze (C89836 (lead-free))

finishing

none

general

product group

valves (mixing valves)

ETIM class

EC011516 Thermostatic flow control valve, hot tap water

brand

Apollo

series

34 Series Mixing Valves

type

34ALF21XP

image for 34ALF-200 Image

image | png

34ALF-200 Image

certifications | pdf

NSF_34xLF_Series_Mixing_valve

diagram | PNG

34AlLF-200 Diagram

submittal sheet | pdf

34AlLF-200 Submittal Sheet

label

value

label

ETIM class

value

EC011516 Thermostatic flow control valve, hot tap water

label

Housing material

value

Bronze
