group: 36H71X00

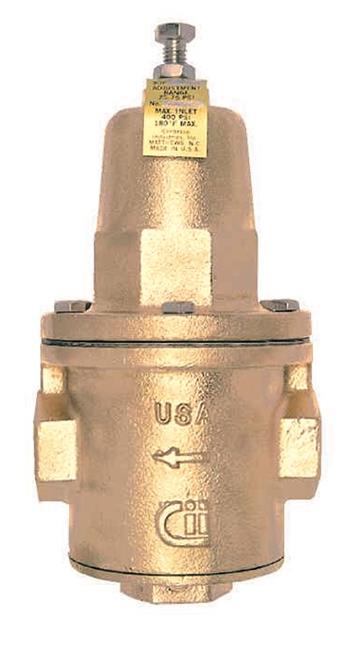

The Apollo 36H Pressure Reducing Valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement. Not for use with potable water systems.
heating
cooling
commercial building
industry
ASSE 1003
CSA B356
item number
size
dimensions
weight
packaging
gtin
item number
size
2-1/2" (DN65)
dimensions
551x194x498 mm
weight
47.63 kg
packaging
carton (1 pce)
gtin
00670750827440
item number
size
2-1/2" (DN65)
dimensions
551x194x498 mm
weight
47.63 kg
packaging
carton (1 pce)
gtin
00670750924446
item number
size
2-1/2" (DN65)
dimensions
551x194x498 mm
weight
47.63 kg
packaging
carton (1 pce)
gtin
00670750961205
item number
size
3" (DN80)
dimensions
622x248x590 mm
weight
59.87 kg
packaging
carton (1 pce)
gtin
00670750825460
item number
size
3" (DN80)
dimensions
622x248x590 mm
weight
59.87 kg
packaging
carton (1 pce)
gtin
00670750960185
item number
size
3" (DN80)
dimensions
622x248x590 mm
weight
59.87 kg
packaging
carton (1 pce)
gtin
00670750968693
item number
size
DN1
DN2
n2
k2
d2-2
D2
item number
36H71901size
2-1/2" (DN65)
DN1
2 1/2" (DN65)
DN2
2 1/2" (DN65)
n2
4
k2
139.5
d2-2
19
D2
178
item number
36H71902size
2-1/2" (DN65)
DN1
2 1/2" (DN65)
DN2
2 1/2" (DN65)
n2
4
k2
139.5
d2-2
19
D2
178
item number
36H71903size
2-1/2" (DN65)
DN1
2 1/2" (DN65)
DN2
2 1/2" (DN65)
n2
4
k2
139.5
d2-2
19
D2
178
color
yellow, bronze
materials
bronze (ASTM B584-C84400)
finishing
none
shape
straight (0º)
connection type
flange
product group
valves (pressure reducing valves)
ETIM class
EC010122 Pressure reducing valve
brand
Apollo
series
36 Series Pressure Reducing Valves
type
36H71X00
UNSPS
40141652
max operating pressure liquid
27.56 bar
min. medium temperature
0.56 °C
max medium temperature
82.22 °C
peak medium temperature
82.22 °C
label
value
label
ETIM class
label
Housing material
value
Bronze
label
Surface protection
value
Untreated
label
Connection 1
value
Flange
label
Connection 2
value
Flange
label
Max. inlet pressure
value
27.56bar
label
Max. inlet pressure (imperial)
value
400psi
label
With pressure gauge
value
No
label
Suitable for liquids
value
Yes
label
Suitable for steam
value
No
label
Suitable for gases
value
No
