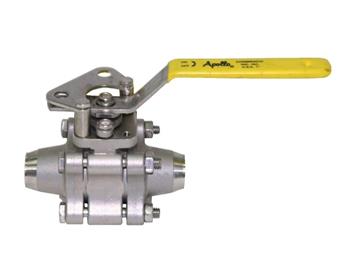

Apollo Stainless Steel 3 Piece Full Port Ball Valve with SS Locking Round Handle 1/2" (2 x Sch. 5 Butt-Weld)

item: 86B30315

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

label

value

label

DN1

value

DN15

label

DN2

value

DN15

drawing for product

characteristics

color

silver, yellow

materials

stainless steel (ASTM A351 CF8M)

finishing

none

shape

straight

connection type

butt Weld, butt weld

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86B Series Ball Valves

type

86B30X15

UNSPS

40141607

product info

item

Apollo Stainless Steel 3 Piece Full Port Ball Valve with SS Locking Round Handle 1/2" (2 x Sch. 5 Butt-Weld)

item number with gtin

86B30315 (00670750333354)

product number with gtin

86B30315 (00670750333354)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86B30X15 - Apollo Stainless Steel 3 Piece Full Port Ball Valve with SS Locking Round Handle (2 x Sch. 5 Butt-Weld)

size

1/2" (DN15)

weight

1.04 kg

dimensions

226x98x168 mm

packaging

carton (1 pce)

image for 86B-300 Image

image | png

86B-300 Image

certifications | pdf

CRN_0C10908_ADD7

submittal sheet | pdf

86B-300 Submittal Sheet

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

Surface protection housing

value

None

label

Material ball

value

Stainless steel

label

Material spindle

value

Stainless steel

label

Material primary spindle seal

value

Polytetrafluoroethylene (PTFE)

label

Nominal diameter connection 1

value

DN 15

label

Nominal diameter connection 2

value

DN 15

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

Full bore

value

Yes

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
