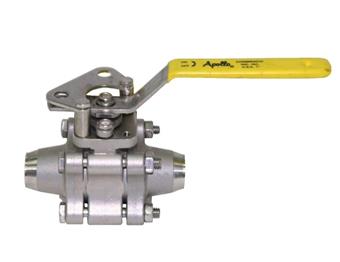

Apollo Stainless Steel 3 Piece Full Port Class 600 Ball Valve with Standard Configuration 2" (2 x Sch 10 Butt Weld)

group: 86G40X01

item: 86G40801

The 86G-400 Stainless Steel 3 Piece Full Port Class 600 Ball Valve embodies a reliable and efficient solution for fluid flow control. Engineered with a swing-out center section and a pressure balanced solid ball, this valve ensures top-tier performance. Moreover, the safety of its operation is guaranteed by features like compression controlled spiral wound gaskets and an anti-blowout one piece bottom entry stem.



• 3-piece construction w/ enclosed fasteners

• Full port

• Stainless steel trim & hardware

• Swing-out center section

• Pressure balanced solid ball

• Compression controlled spiral wound gaskets

• Anti-blowout one piece bottom entry stem

• Two-position locking

• Adjustable multi-piece PTFE “V” style packing

• Fully machined ISO5211 mounting

• Cast bosses on the center-section and end caps for bleed & drain ports

• Vacuum service to 29 in of Hg.

• 150 psi saturated steam

read more
read less

applications

no applications available

segments

no solutions available

approvals

CRN

CRN

characteristics

materials

stainless steel

connection type

butt Weld, butt weld

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86G Series Ball Valves

type

86G40X01

product info

item

Apollo Stainless Steel 3 Piece Full Port Class 600 Ball Valve with Standard Configuration 2" (2 x Sch 10 Butt Weld)

item number with gtin

86G40801 (00191988118044)

product number with gtin

86G40801 (00191988118044)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86G40X01 - Apollo Stainless Steel 3 Piece Full Port Class 600 Ball Valve with Standard Configuration (2 x Sch 10 Butt Weld)

weight

27.6 lb

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
