Apollo Brass ASME Air Safety Relief Valve (MNPT)

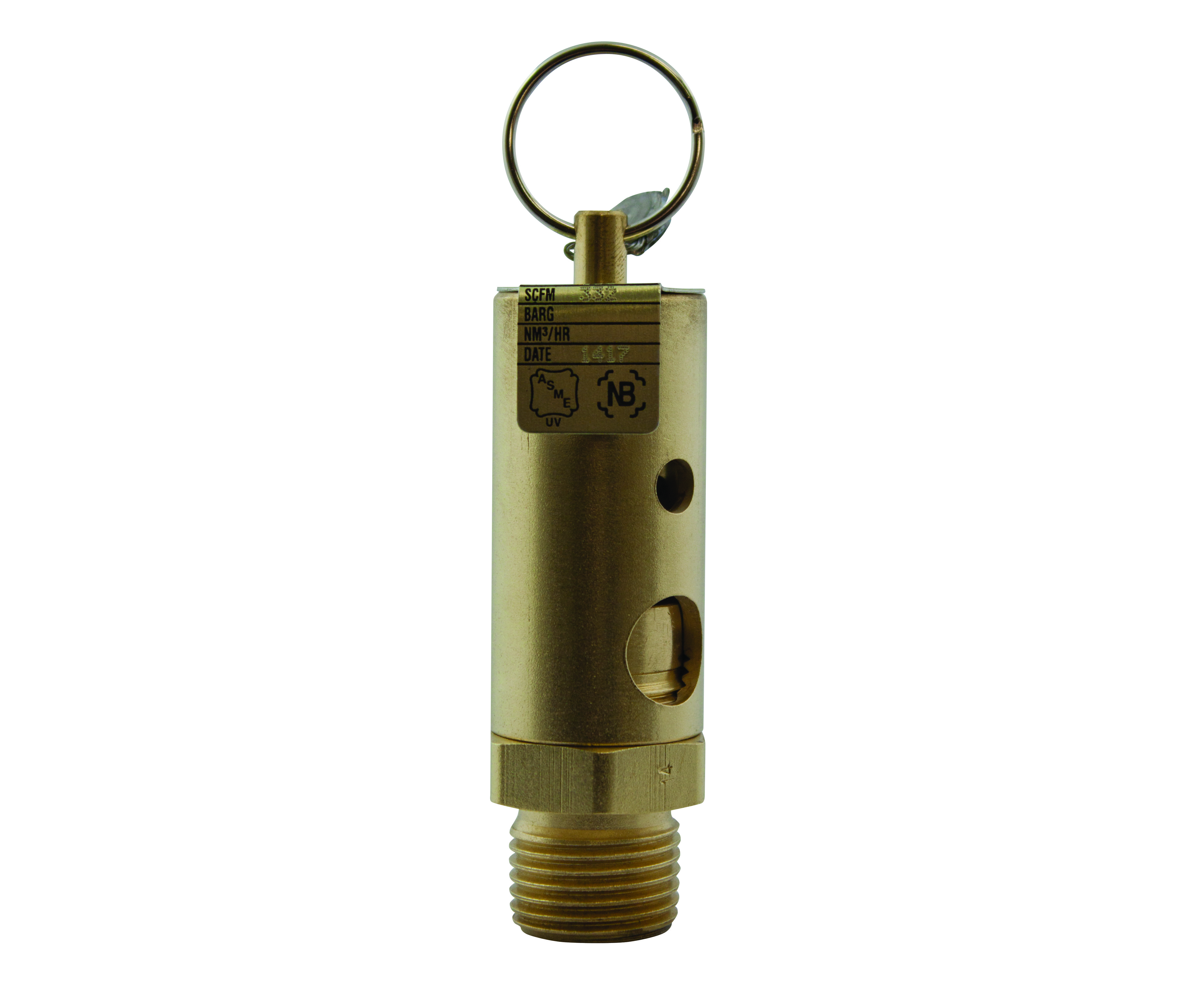

Product Image for Apollo Brass ASME Air Safety Relief Valve (MNPT)
Product Image for Apollo Brass ASME Air Safety Relief Valve (MNPT)

group: 15110

Rugged design 15 Series air relief valves provide dependable overpressure protection at an economical price. Top guided design features brass construction and resilient seating for superior performance. Widely used by OEM's and for aftermarket replacement.
  • National Board Certified 15 psig thru 250 psig
  • Viton O-Ring Seat
  • Registered in all Canadian Provinces and Territories, CRN #0G8547.5C
  • ASTM B16 Brass Body
  • RoHS Compliant Materials
  • European Pressure Equipment Directive Compliant Option (CE/PED)



read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

compressed air

compressed air

show all
show less

segments

commercial building

commercial building

show all
show less

approvals

CRN

CRN

show all
show less

item number

size

dimensions

weight

packaging

gtin

item number

15112b25ace

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00670750407482

item number

15112b27

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988106041

item number

15112b28q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988043520

item number

15112b38

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988114541

item number

15112b40ceq

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988040529

item number

15112b40q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988023669

item number

15112b55

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00670750979804

item number

15112b60q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988038267

item number

15112b65q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988028534

item number

15112b73

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988114480

item number

15112b80q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988088750

item number

15112b87

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988012908

item number

15112b116

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988084189

item number

15112b120q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988106232

item number

15112b135q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988128425

item number

15112b165ceq

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988034726

item number

15112b167

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988048624

item number

15112b190ce

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988121495

item number

15112b205q

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988087012

item number

15112b234

size

1/4" (DN8)

dimensions

66x20x20 mm

weight

0.08 kg

packaging

-

gtin

00191988091736

item number

15115b28q

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988102647

item number

15115b30q

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988118105

item number

15115b41

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988014131

item number

15115b41q

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988129422

item number

15115b50q

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988070038

item number

15115b109

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.57 kg

packaging

-

gtin

00191988115388

item number

15115b110q

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988120986

item number

15115b116q

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988119195

item number

15115b215

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00191988040512

item number

15115b232

size

3/8" (DN10)

dimensions

82x28x28 mm

weight

0.19 kg

packaging

-

gtin

00670750767982

item number

15117b15ceq

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988046071

item number

15117b40ceq

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988041168

item number

15117b65q

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988108137

item number

15117b76

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988059972

item number

15117b83

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988126230

item number

15117b85

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988104221

item number

15117b85ceq

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988041205

item number

15117b87

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988058531

item number

15117b100ce

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00670750989056

item number

15117b105

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988047528

item number

15117b127

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988107284

item number

15117b138

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988090661

item number

15117b140q

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988103484

item number

15117b232

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00670750117534

item number

15117b235q

size

1/2" (DN15)

dimensions

85x28x28 mm

weight

0.2 kg

packaging

-

gtin

00191988029890

item number

15118b25q

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988112110

item number

15118b145

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988042394

item number

15118b145q

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988013332

item number

15118b175q

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988044114

item number

15118b218

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988118358

item number

15118b235q

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988029937

item number

15118b247

size

3/4" (DN20)

dimensions

105x30x30 mm

weight

0.22 kg

packaging

-

gtin

00191988100063

item number

15119b15q

size

1" (DN25)

dimensions

130x47x47 mm

weight

0.57 kg

packaging

-

gtin

00670750330100

item number

15119b25q

size

1" (DN25)

dimensions

130x47x47 mm

weight

0.57 kg

packaging

-

gtin

00191988085001

item number

15119b138ceq

size

1" (DN25)

dimensions

130x47x47 mm

weight

0.57 kg

packaging

-

gtin

00191988036485

item number

15119b180

size

1" (DN25)

dimensions

130x47x47 mm

weight

0.57 kg

packaging

-

gtin

00191988036645

item number

15119b200ce

size

1" (DN25)

dimensions

130x47x47 mm

weight

0.57 kg

packaging

-

gtin

00191988062576

item number

15119b232

size

1" (DN25)

dimensions

130x47x47 mm

weight

0.57 kg

packaging

-

gtin

00191988117313

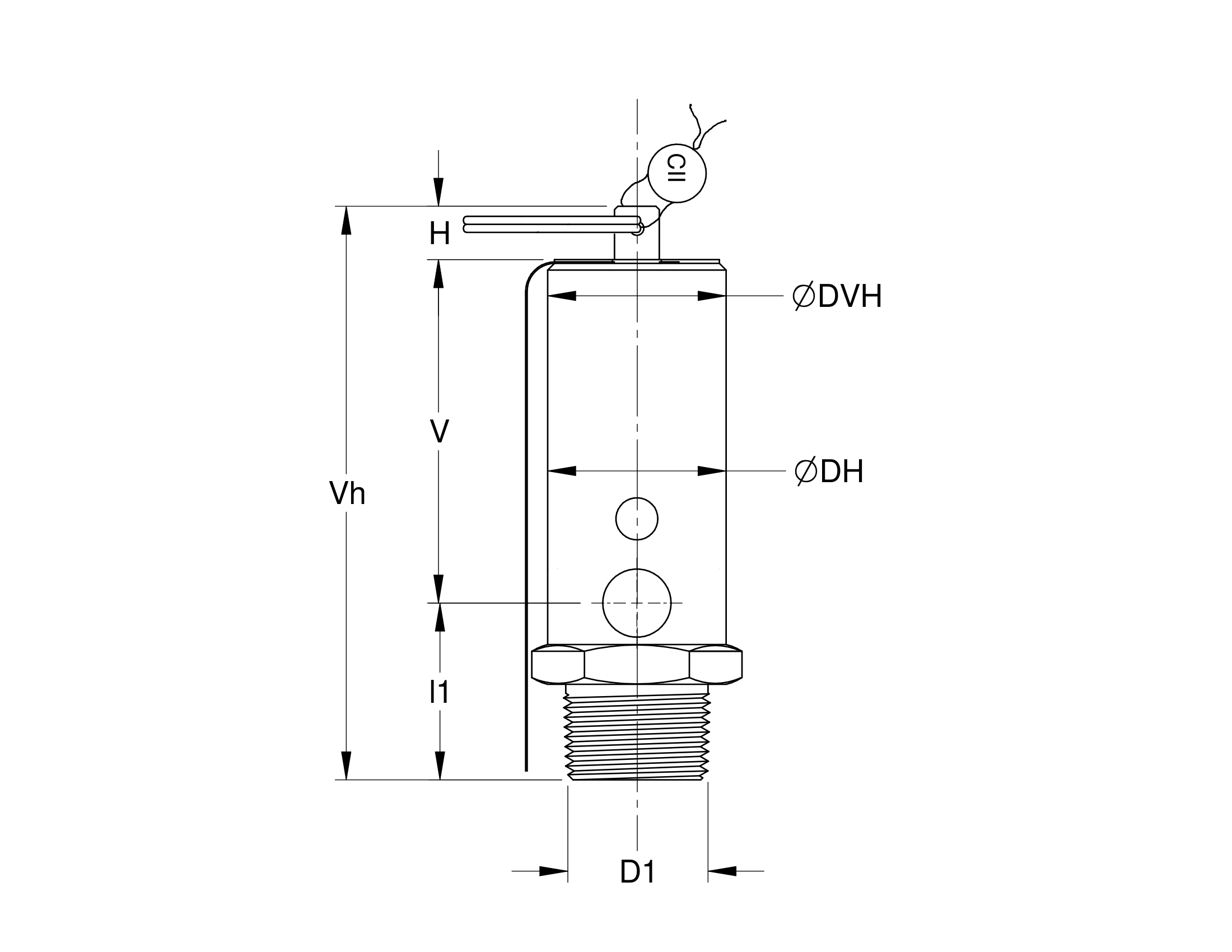

item number

size

d1

DN1

l1

h1

V

item number

15112b25ace

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b27

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b28q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b38

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b40ceq

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b40q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b55

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b60q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b65q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b73

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b80q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b87

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b116

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b120q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b135q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b165ceq

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b167

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b190ce

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b205q

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15112b234

size

1/4" (DN8)

d1

13.7

DN1

1/4" (DN8)

l1

27

h1

9

V

31

item number

15115b28q

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b30q

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b41

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b41q

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b50q

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b109

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b110q

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b116q

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b215

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15115b232

size

3/8" (DN10)

d1

17.2

DN1

3/8" (DN10)

l1

32

h1

10

V

41

item number

15117b15ceq

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b40ceq

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b65q

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b76

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b83

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b85

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b85ceq

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b87

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b100ce

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b105

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b127

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b138

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b140q

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b232

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15117b235q

size

1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

35

h1

9

V

41

item number

15118b25q

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15118b145

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15118b145q

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15118b175q

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15118b218

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15118b235q

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15118b247

size

3/4" (DN20)

d1

26.7

DN1

3/4" (DN20)

l1

29

h1

8

V

67

item number

15119b15q

size

1" (DN25)

d1

33.4

DN1

1" (DN25)

l1

40

h1

16

V

74

item number

15119b25q

size

1" (DN25)

d1

33.4

DN1

1" (DN25)

l1

40

h1

16

V

74

item number

15119b138ceq

size

1" (DN25)

d1

33.4

DN1

1" (DN25)

l1

40

h1

16

V

74

item number

15119b180

size

1" (DN25)

d1

33.4

DN1

1" (DN25)

l1

40

h1

16

V

74

item number

15119b200ce

size

1" (DN25)

d1

33.4

DN1

1" (DN25)

l1

40

h1

16

V

74

item number

15119b232

size

1" (DN25)

d1

33.4

DN1

1" (DN25)

l1

40

h1

16

V

74

technical drawing for product

characteristics

color

brass

materials

brass (ASTM B16)

finishing

none

shape

straight

connection type

MPT - male thread conical (NPT)

general

product group

valves (safety relief valves)

ETIM class

EC011503 Spring-loaded pressure relief valve

brand

Apollo

series

15 Series Safety Relief Valves

type

15110

UNSPS

40141604

technical

max medium temperature

162.78 °C

peak medium temperature

162.78 °C

image for 15110

image | png

15110

image for 15-100 Diagram

diagram | png

15-100 Diagram

submittal sheet | pdf

15 Submittal Sheet

certifications | pdf

CRN_0G8547

label

value

label

ETIM class

value

EC011503 Spring-loaded pressure relief valve

label

Housing material

value

Brass

label

Connection 1

value

External thread conical (NPT)

label

Surface protection

value

Untreated

label

Suitable for gases (incl. steam)

value

No

got any questions?

feel free to contact us

contact
product selected products selected
compare

you can compare up to 2 products

you can compare up to 4 products

[saving downloads] requires an account

register
product lines
Pegler Prestex Pegler ProFlow Yorkshire Apollo Valves VSH SmartPress VSH XPress VSH SudoPress VSH PowerPress VSH Shurjoint VSH Tectite
applications
potable water natural gas heating & cooling solar sprinkler compressed air steam

do you want to stay informed?
then sign up for our newsletter.

Office 206, Block D, DSO Headquarters
Dubai Silicon Oasis, Dubai, UAE
PO Box: 341479

+971 4 501 5929
+971 4 501 5930
Linkedin Youtube Instagram
terms & conditions

|

privacy statement

|

cookie policy

3 downloads selected

download
email
save

for is a account required

log in
register

choose your region

send by email

This field is hidden when viewing the form
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

go to my IPS now!
