group: 16LF200

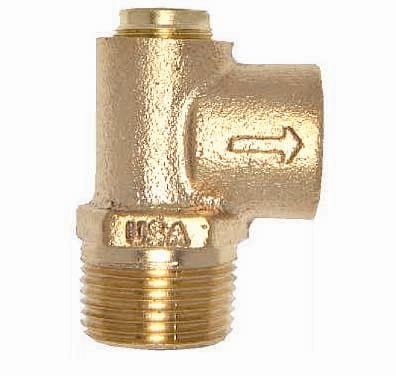

Apollo Valves 16 Series Pressure relief valves relieve excess pressure in cold water supply systems, storage tanks, well pumps. Also suitable for air, oil and other non-hazardous liquids.
heating
cooling
commercial building
CRN
NSF
item number
size
dimensions
weight
packaging
gtin
item number
size
3/4" (DN20) x 1/2" (DN15)
dimensions
-
weight
0.17 kg
packaging
carton (1 pce)
gtin
00670750759628

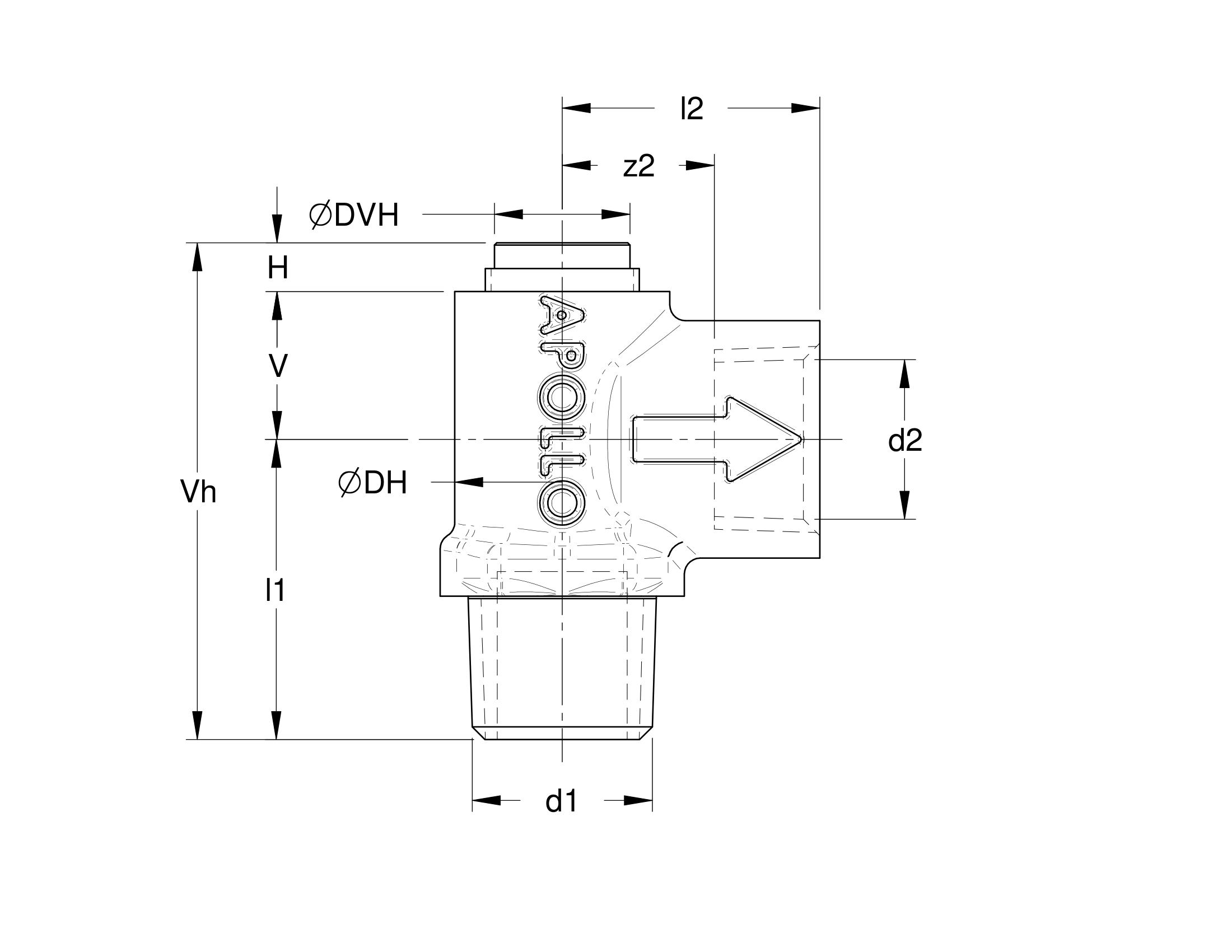

item number
size
d1
DN1
l1
d2
DN2
l2
z2
h1
V
item number
16lf203e7size
3/4" (DN20) x 1/2" (DN15)
d1
26.7
DN1
1/2" (DN15)
l1
34
d2
21.3
DN2
1/2" (DN15)
l2
29
z2
17
h1
5
V
17
color
bronze
materials
bronze (C89836 (lead-free))
finishing
none
shape
Perpendicular
connection type
MPT - male thread conical (NPT), FPT - female thread conical (NPT)
product group
valves (safety relief valves)
ETIM class
EC011311 Safety valve
brand
Apollo
series
16 Series Safety Relief Valves
type
16LF20XE7
UNSPS
40141606
max operating pressure liquid
12.41 bar
label
value
label
ETIM class
value
label
Housing material
value
Bronze
label
Connection 1
value
External thread conical (NPT)
label
Nominal diameter connection 1
value
1/2 inch (15)
label
Outer pipe diameter connection 1
value
26.67mm
label
Outer pipe diameter connection 1 (imperial)
value
1.05"
label
Connection 2
value
Internal thread conical (NPT)
label
Nominal diameter connection 2
value
1/2 inch (15)
label
Outer pipe diameter connection 2
value
21.34mm
label
Outer pipe diameter connection 2 (imperial)
value
0.84"
label
Max. operating pressure at 20 °C
value
12.41bar
label
Max. operating pressure at 20 °C (imperial)
value
180psi
label
Surface protection
value
Untreated
label
Length of connection 1
value
34.04mm
label
Length of connection 1 (imperial)
value
1.34"
label
Length of connection 2
value
29.21mm
label
Length of connection 2 (imperial)
value
1.15"
label
Working length connection 2
value
17.25mm
label
Working length connection 2 (imperial)
value
0.68"
label
Height
value
0mm
label
Suitable for heating
value
Yes
label
Suitable for cooling
value
Yes
label
Suitable for solar heating
value
No
label
Suitable for hot tap water
value
No
