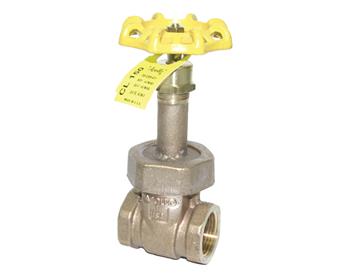

Apollo Class 150 Rising Stem Bronze Gate Valves, Union Bonnet (2 x FNPT)

group: 3020X01

The Apollo® Model 107T (30 Series) Gate Valve provides a cost effective “Made in the USA” alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo® gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
  • Guided Solid Bronze Disc Wedge
  • Adjustable Graphite Stem Packing
  • Rising Stem
  • Dezincification Resistant
  • All Bronze Construction
  • 100% Factory Tested
  • NPT Connection
  • Union Bonnet
  • Malleable Iron Rugged Hand Wheel
  • 100% Cast, Machined and Assembled in the USA
  • ARRA Complaint



read more
read less

applications

heating

heating

cooling

cooling

steam

steam

segments

commercial building

commercial building

approvals

CRN

CRN

item number

size

DN1

DN2

item number

3045401

size

3/4" (DN20)

DN1

DN20

DN2

DN20

item number

3045501

size

1" (DN25)

DN1

DN25

DN2

DN25

item number

3045601

size

1-1/4" (DN32)

DN1

DN32

DN2

DN32

item number

3045701

size

1-1/2" (DN40)

DN1

DN40

DN2

DN40

item number

3045801

size

2" (DN50)

DN1

DN50

DN2

DN50

technical drawing for product

characteristics

color

yellow

materials

bronze (C89836 (lead-free))

finishing

none

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

connection type

FPT - female thread conical (NPT)

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

brand

Apollo

series

30 Series Gate Valves

type

3020X01

UNSPS

40141613

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Connection 1

value

Internal thread conical (NPT)

label

Connection 2

value

Internal thread conical (NPT)

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Surface protection

value

Untreated

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
