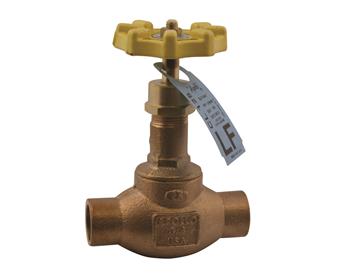

Apollo Class 125 Lead Free Bronze Globe Valve (2 x Solder)

group: 33LF14X01

The lead free* Apollo® Model 120S-LF (33 Series) Globe Valve provides a reliable, long lasting, “Made in the USA” alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials.
  • Lead Free* AB1953 Certified
  • Optimum Flow Capacity
  • Adjustable Graphite Stem Packing
  • Dezincification Resistant
  • 100% Factory Tested per MSS
  • Solder Connection
  • Screw-in Bonnet
  • Malleable Iron Rugged Hand Wheel
  • Back Seat Protection
  • 100% Cast, Machined and Assembled in the USA
  • ARRA Compliant



read more
read less

applications

potable water

potable water

segments

commercial building

commercial building

approvals

CRN

CRN

NSF

NSF

item number

size

DN1

DN2

item number

33LF14301

size

1/2" (DN15)

DN1

DN15

DN2

DN15

item number

33LF14401

size

3/4" (DN20)

DN1

DN20

DN2

DN20

item number

33LF14501

size

1" (DN25)

DN1

DN25

DN2

DN25

item number

33LF14601

size

1-1/4" (DN32)

DN1

DN32

DN2

DN32

item number

33LF14701

size

1-1/2" (DN40)

DN1

DN40

DN2

DN40

item number

33LF14801

size

2" (DN50)

DN1

DN50

DN2

DN50

technical drawing for product

characteristics

color

yellow

materials

bronze (C89836 (lead-free))

finishing

none

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

connection type

solder

general

product group

valves (globe valves)

ETIM class

EC010120 Globe valve

brand

Apollo

series

33 Series Globe Valves

type

33LF14X01

UNSPS

40141611

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Surface protection

value

Untreated

label

Operation

value

Hand wheel

label

Suitable for liquids

value

No

label

Suitable for gases

value

No

label

Suitable for steam

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
