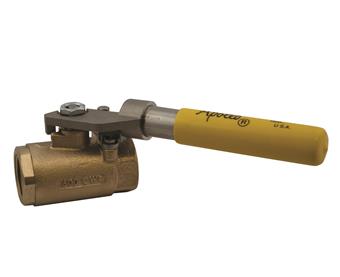

Apollo Bronze 2 Piece Standard Port Ball Valve with Spring Return Handle, 316 SS Ball & Stem, Standard Configuration (2 x FNPT)

code

size

dimensions

weight

packaging

gtin

code

7154101

size

1/4" (DN8)

dimensions

135x30x58 mm

weight

0.67 kg

packaging

carton (1 pce)

gtin

00670750680151

code

7154201

size

3/8" (DN10)

dimensions

135x30x58 mm

weight

0.66 kg

packaging

carton (1 pce)

gtin

00670750680175

code

7154301

size

1/2" (DN15)

dimensions

135x30x58 mm

weight

0.61 kg

packaging

carton (1 pce)

gtin

00670750680205

code

7154401

size

3/4" (DN20)

dimensions

135x30x58 mm

weight

1.05 kg

packaging

carton (1 pce)

gtin

00670750680267

code

7154501

size

1" (DN25)

dimensions

135x30x58 mm

weight

1.17 kg

packaging

carton (1 pce)

gtin

00670750680328

code

7154601

size

1-1/4" (DN32)

dimensions

135x30x58 mm

weight

1.9 kg

packaging

carton (1 pce)

gtin

00670750680373

code

7154701

size

1-1/2" (DN40)

dimensions

135x30x58 mm

weight

2.41 kg

packaging

carton (1 pce)

gtin

00670750680403

code

7154801

size

2" (DN50)

dimensions

135x30x58 mm

weight

2.91 kg

packaging

carton (1 pce)

gtin

00670750680434

code

size

d1

DN1

d2

DN2

code

7154101

size

1/4" (DN8)

d1

13.7

DN1

DN8

d2

13.7

DN2

DN8

code

7154201

size

3/8" (DN10)

d1

17.2

DN1

DN10

d2

17.2

DN2

DN10

code

7154301

size

1/2" (DN15)

d1

21.3

DN1

DN15

d2

21.3

DN2

DN15

code

7154401

size

3/4" (DN20)

d1

26.7

DN1

DN20

d2

26.7

DN2

DN20

code

7154501

size

1" (DN25)

d1

33.4

DN1

DN25

d2

33.4

DN2

DN25

code

7154601

size

1-1/4" (DN32)

d1

42.2

DN1

DN32

d2

42.2

DN2

DN32

code

7154701

size

1-1/2" (DN40)

d1

48.3

DN1

DN40

d2

48.3

DN2

DN40

code

7154801

size

2" (DN50)

d1

60.3

DN1

DN50

d2

60.3

DN2

DN50

product info

item

Apollo Bronze 2 Piece Standard Port Ball Valve with Spring Return Handle, 316 SS Ball & Stem, Standard Configuration (2 x FNPT)

item number with gtin

7154X01

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

weight

2.91 kg

dimensions

135x30x58 mm

characteristics

color

yellow, bronze

materials

bronze (ASTM B584-C84400)

finishing

none

shape

straight

connection type

FPT - female thread conical (NPT)

technical

max operating pressure liquid

41.37 bar

min. medium temperature

-28.89 °C

max medium temperature

260 °C

general

product group

afsluiters (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

71 Series Ball Valves

type

7154X01

UNSPS

40141607

image | png

71-500 Image

diagram | png

71-500 Diagram

submittal sheet | pdf

71-500 Submittal Sheet

Other Attachments | pdf

71-500 Kit Listing

label

value

label

etim-class

value

EC011343 Ball valve

label

Housing material

value

Bronze

label

Surface protection housing

value

None

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Connection 1

value

Internal thread conical (NPT)

label

Connection 2

value

Internal thread conical (NPT)

label

With filter

value

No

label

With thermometer

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-28.89°C - 260°C

label

Medium temperature (continuous) (imperial)

value

-20.002°F - 500°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

2-part

label

Full bore

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

products

Apollo Bronze 2 Piece Standard Port Ball Valve with Spring Return Handle, 316 SS Ball & Stem, Standard Configuration (2 x FNPT)
