Apollo Ductile Lugged Butterfly Valve with Aluminum Bronze Disc, EPDM Seat, Stainless Steel Shaft, Locking Handle (2 x Lug Type)

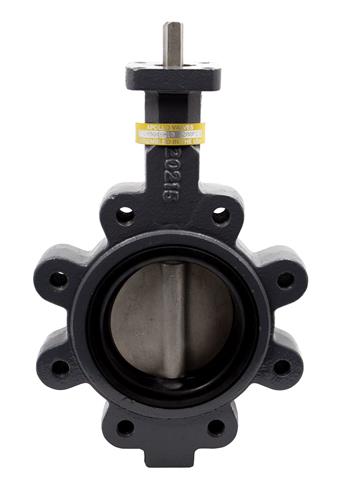

Product Image for Apollo Ductile Lugged Butterfly Valve with Aluminum Bronze Disc, EPDM Seat, Stainless Steel Shaft, Locking Handle (2 x Lug Type)
Product Image for Apollo Ductile Lugged Butterfly Valve with Aluminum Bronze Disc, EPDM Seat, Stainless Steel Shaft, Locking Handle (2 x Lug Type)

group: LD1450XBE14

The Apollo® LD145/WD145 Series Ductile Iron Butterfly Valves are ideal for use in Industrial and Commerical/HVAC/Mechanical applications. The WD145 Series is a wafer style valve and the LD145 Series is a lug style. Available in sizes 2” - 12”.
  • Assembled in USA, Pageland, SC
  • Compatible with ANSI Class 125 & 150 Flanges
  • ISO 5211 top plate allows choice of Apollo® pneumatic actuators and manual operators
  • Conforms to MSS SP-67 & API 609
  • LD145 Series suitable for end of line service to rated pressure (2"-12")
  • 3" and larger meet performance requirements of AWWA C-504
  • Gray, epoxy coated bodies
  • Pin-less/bolt-less stem shaft design
  • Double-D stem input through 12"



read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

potable water

potable water

show all
show less

segments

industry

industry

commercial building

commercial building

show all
show less

approvals

CRN

CRN

NSF

NSF

show all
show less
  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM

code

size

dimensions

weight

packaging

gtin

code

LD14525BE14

size

2-1/2" (DN65)

dimensions

-

weight

4.54 kg

packaging

carton (1 pce)

gtin

00670750047718

code

LD14525BE14SF

size

2-1/2" (DN65)

dimensions

-

weight

4.54 kg

packaging

carton (1 pce)

gtin

00670750048753

code

LD14503BE14

size

3" (DN80)

dimensions

-

weight

17.69 kg

packaging

carton (1 pce)

gtin

00670750047701

code

LD14503BE14SF

size

3" (DN80)

dimensions

-

weight

17.69 kg

packaging

carton (1 pce)

gtin

00670750974113

code

LD14504BE14SF

size

4" (DN100)

dimensions

-

weight

7.71 kg

packaging

carton (1 pce)

gtin

00670750055317

code

LD14505BE14SF

size

5" (DN125)

dimensions

-

weight

9.07 kg

packaging

carton (1 pce)

gtin

00670750586651

code

LD14505BE14

size

5" (DN125)

dimensions

-

weight

9.07 kg

packaging

-

gtin

00191988115173

code

LD14506BE14

size

6" (DN150)

dimensions

-

weight

10.43 kg

packaging

carton (1 pce)

gtin

00670750287688

code

LD14506BE14SF

size

6" (DN150)

dimensions

-

weight

10.43 kg

packaging

carton (1 pce)

gtin

00670750994555

code

LD14508BE14SF

size

8" (DN200)

dimensions

-

weight

17.69 kg

packaging

carton (1 pce)

gtin

00670750055355

code

LD14510BE14

size

10" (DN250)

dimensions

-

weight

31.84 kg

packaging

carton (1 pce)

gtin

00670750665608

code

size

DN1

DN2

code

LD14525BE14

size

2-1/2" (DN65)

DN1

DN65

DN2

DN65

code

LD14525BE14SF

size

2-1/2" (DN65)

DN1

DN65

DN2

DN65

code

LD14503BE14

size

3" (DN80)

DN1

DN80

DN2

DN80

code

LD14503BE14SF

size

3" (DN80)

DN1

DN80

DN2

DN80

code

LD14504BE14SF

size

4" (DN100)

DN1

DN100

DN2

DN100

code

LD14505BE14SF

size

5" (DN125)

DN1

DN125

DN2

DN125

code

LD14505BE14

size

5" (DN125)

DN1

-

DN2

-

code

LD14506BE14

size

6" (DN150)

DN1

DN150

DN2

DN150

code

LD14506BE14SF

size

6" (DN150)

DN1

DN150

DN2

DN150

code

LD14508BE14SF

size

8" (DN200)

DN1

DN200

DN2

DN200

code

LD14510BE14

size

10" (DN250)

DN1

DN250

DN2

DN250

technical drawing for product

product info

item

Apollo Ductile Lugged Butterfly Valve with Aluminum Bronze Disc, EPDM Seat, Stainless Steel Shaft, Locking Handle (2 x Lug Type)

item number with gtin

LD1450XBE14

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

weight

31.84 kg

characteristics

color

black

materials

cast iron (ASTM A536 65-45-12)

finishing

none

shape

straight

general

product group

valves (butterfly valves)

ETIM class

EC010910 Butterfly valve

brand

Apollo

series

LD145 WD145 Series Butterfly Valves

type

LD1450XBE14

certifications | pdf

CRN_0C12102

save to my IPS
image for LD145

image | png

LD145

save to my IPS

certifications | pdf

NSF_LC149_LD141_LD145_Series_Butterfly_valves

save to my IPS
image for Diagram

diagram | png

Diagram

save to my IPS

submittal sheet | pdf

LD145 WD145 Submittal Sheet

save to my IPS

label

value

label

etim-class

value

EC010910 Butterfly valve

label

Housing material

value

Cast iron

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
