group: V912
potable water
heating
cooling
industry
commercial building
datacenters
WRAS
code
size
dimensions
weight
packaging
gtin

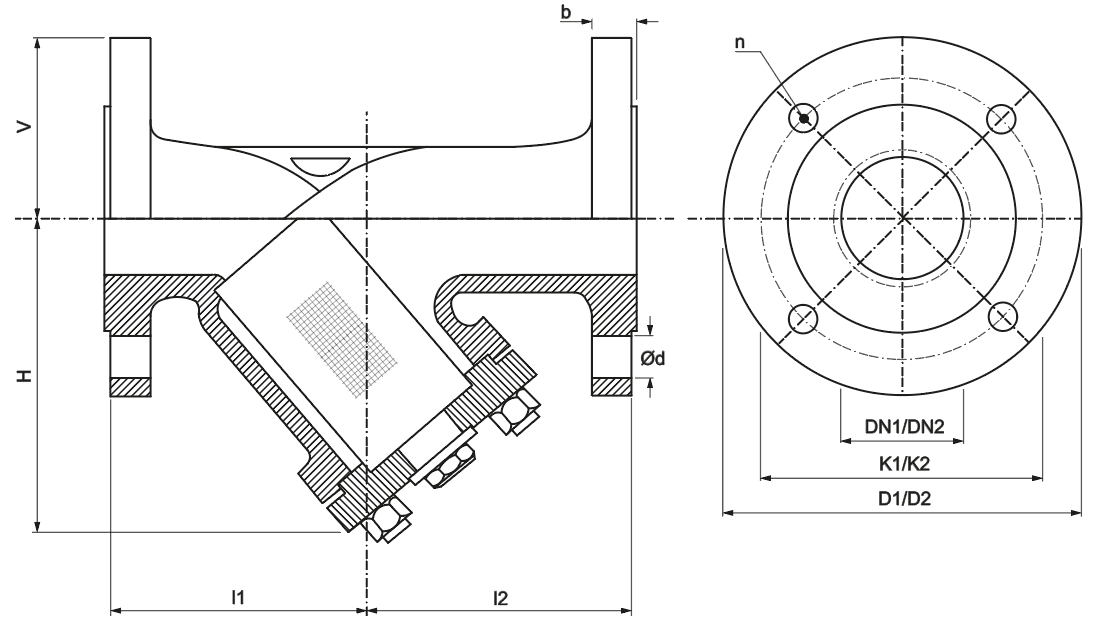

code
size
d1
DN1
l1
d2
DN2
l2
n2
k2
b2
d2-2
D2
H
V
D1
a
angle
code
size
PN16 DN65
d1
76.0
DN1
DN65
l1
145
d2
76.0
DN2
DN65
l2
145
n2
4
k2
145
b2
18
d2-2
18
D2
185
H
137
V
93
D1
185
a
45
angle
45
code
size
PN16 DN80
d1
88.0
DN1
DN80
l1
155
d2
88.0
DN2
DN80
l2
155
n2
8
k2
160
b2
18
d2-2
18
D2
200
H
152
V
100
D1
200
a
45
angle
45
code
size
PN16 DN100
d1
114.0
DN1
DN100
l1
175
d2
114.0
DN2
DN100
l2
175
n2
8
k2
180
b2
18
d2-2
18
D2
220
H
205
V
110
D1
220
a
45
angle
45
code
size
PN16 DN125
d1
139.0
DN1
DN125
l1
200
d2
139.0
DN2
DN125
l2
200
n2
8
k2
210
b2
18
d2-2
18
D2
250
H
244
V
125
D1
250
a
45
angle
45
code
size
PN16 DN150
d1
168.0
DN1
DN150
l1
240
d2
168.0
DN2
DN150
l2
240
n2
8
k2
240
b2
18
d2-2
22
D2
285
H
269
V
143
D1
285
a
45
angle
45
code
size
PN16 DN200
d1
219.0
DN1
DN200
l1
300
d2
219.0
DN2
DN200
l2
300
n2
12
k2
295
b2
26
d2-2
22
D2
340
H
341
V
170
D1
340
a
45
angle
45
code
size
PN16 DN250
d1
273.0
DN1
DN250
l1
365
d2
273.0
DN2
DN250
l2
365
n2
12
k2
355
b2
22
d2-2
26
D2
405
H
455
V
203
D1
405
a
45
angle
45
code
size
PN16 DN300
d1
323.0
DN1
DN300
l1
425
d2
323.0
DN2
DN300
l2
425
n2
12
k2
410
b2
24.5
d2-2
26
D2
460
H
476
V
230
D1
460
a
45
angle
45
code
size
PN16 DN350
d1
355.6
DN1
DN350
l1
490
d2
355.6
DN2
DN350
l2
720
n2
16
k2
470
b2
26.5
d2-2
26
D2
520
H
725
V
260
D1
520
a
45
angle
45
item
Pegler y-pattern strainer ductile iron (2 x flange)
item number with gtin
V912
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
320 kg
dimensions
980x520x985 mm
color
blue
materials
cast iron (Cast iron EN-GJS-450-10)
finishing
primer/paint
shape
straight, 45º
connection type
flange
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
valves (strainers)
ETIM class
EC010151 Pipeline strainerHS code
84818019
brand
Pegler
series
Strainer
type
V912
UNSPS
40142505
label
value
label
etim-class
label
Shape
value
Pipeline strainer
label
Housing material
value
Cast iron
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Connection
value
Flange
label
With coupling
value
No
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Flange standard
value
DIN
label
Max. operating pressure
value
16bar
label
Max. operating pressure (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-10°C - 120°C
label
Medium temperature (continuous) (imperial)
value
14°F - 248°F
label
With drain possibility (connection)
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
