item: 7024014
heating
cooling
vacuum
commercial building
CRN
label
value
label
d1
value
79.4
label
DN1
value
DN80
label
l1
value
105
label
z1
value
62
label
d2
value
79.4
label
DN2
value
DN80
label
l2
value
105
label
z2
value
62
label
M1
value
25
label
M2
value
197
label
E
value
28
label
Y
value
23
label
V
value
78
label
U
value
35
label
D1
value
89
item

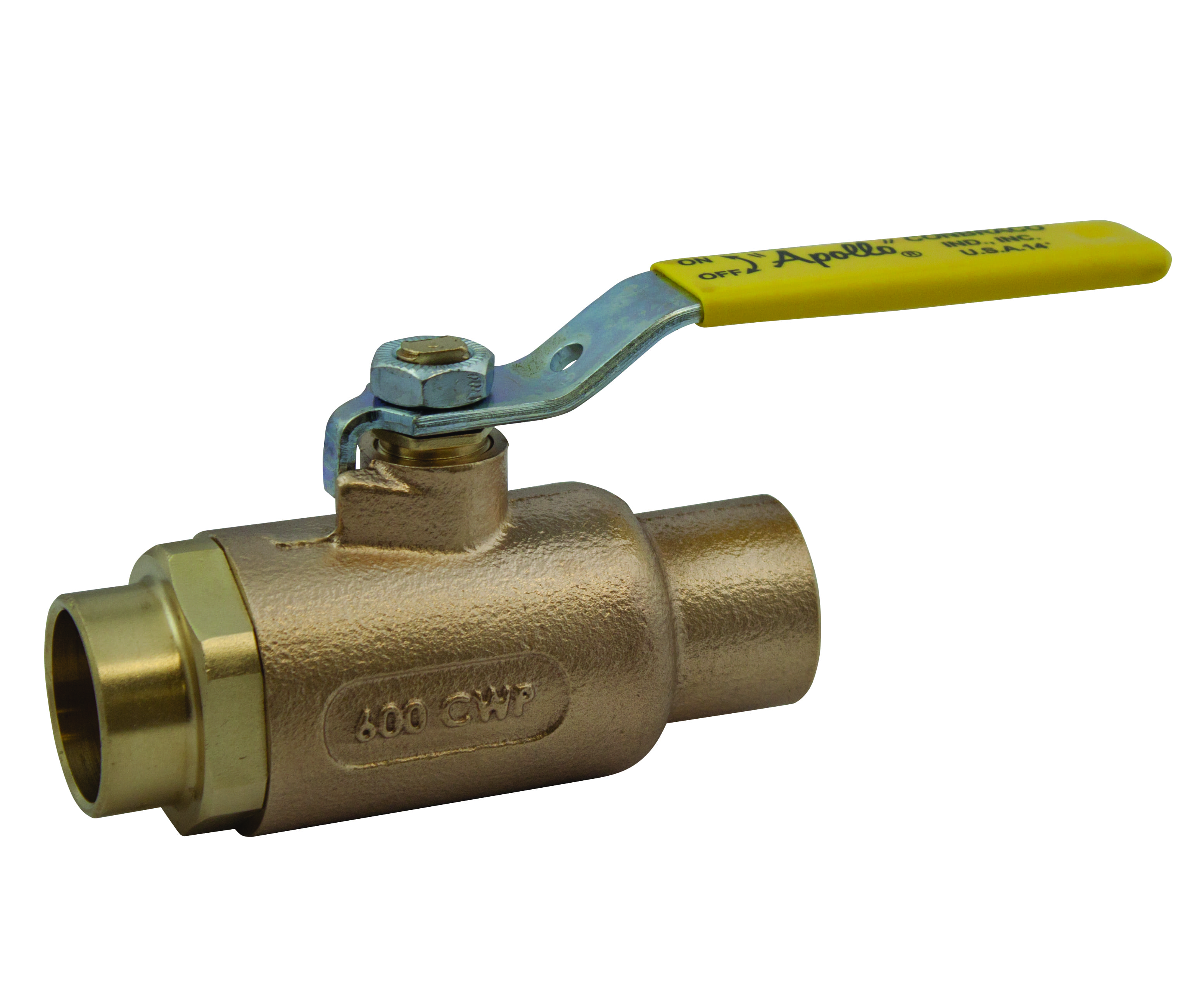

Apollo Bronze 2 Piece Ball Valve with Side-Vented Ball (Uni-Directional) 3" (2 x Solder)
item number with gtin
7024014 (00670750208669)
product number with gtin
7024014 (00670750208669)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
3" (DN80)
weight
7.59 kg
dimensions
135x30x58 mm
packaging
carton (1 pce)
color
bronze
materials
bronze (ASTM B584-C84400)
finishing
none
shape
straight
connection type
solder, solder
Bore
63.5 mm (No)
max operating pressure liquid
41.37 bar
min. medium temperature
-28.89 °C
max medium temperature
176.67 °C
product group
valves ()
ETIM class
EC011343 Ball valvebrand
Apollo
series
70 Series Ball Valves
type
7024X14
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Bronze
label
Surface protection housing
value
None
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Nominal diameter connection 1
value
DN 80
label
Outer pipe diameter connection 1
value
79.38mm
label
Outer pipe diameter connection 1 (imperial)
value
3.13"
label
Connection 1
value
Soldered sleeve
label
Nominal diameter connection 2
value
DN 80
label
Outer pipe diameter connection 2
value
79.38mm
label
Outer pipe diameter connection 2 (imperial)
value
3.13"
label
Connection 2
value
Soldered sleeve
label
With filter
value
No
label
With thermometer
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-28.89°C - 176.67°C
label
Medium temperature (continuous) (imperial)
value
-20.002°F - 350.006°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
No
label
Length of connection 1
value
104.67mm
label
Length of connection 1 (imperial)
value
4.12"
label
Working length connection 1
value
62.26mm
label
Working length connection 1 (imperial)
value
2.45"
label
Length of connection 2
value
104.67mm
label
Length of connection 2 (imperial)
value
4.12"
label
Working length connection 2
value
62.26mm
label
Working length connection 2 (imperial)
value
2.45"
label
Handle height
value
22.81mm
label
Handle height (imperial)
value
0.9"
label
Handgrip length
value
25.35mm
label
Handgrip length (imperial)
value
1"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
