item: 70LF2480410
heating
cooling
vacuum
potable water
commercial building
CRN
NSF
label
value

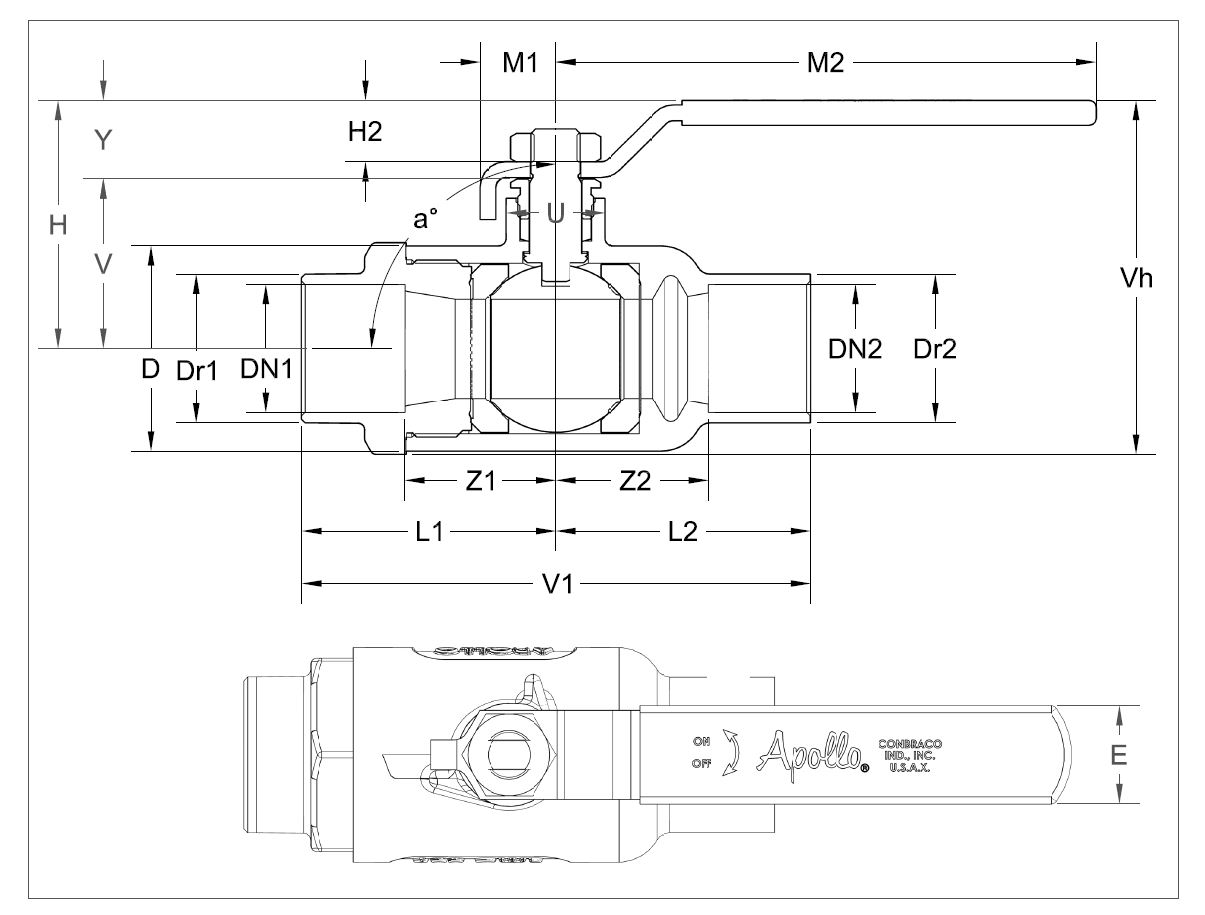

label
d1
value
54.0
label
DN1
value
DN50
label
l1
value
81
label
z1
value
47
label
d2
value
54.0
label
DN2
value
DN50
label
l2
value
79
label
z2
value
45
label
M1
value
24
label
M2
value
197
label
E
value
28
label
Y
value
78
label
V
value
60
label
U
value
33
label
D1
value
60
item
Apollo Bronze 2 Piece Ball Valve with 2-1/4" Stem Extension, SS Lever & Nut 2" (2 x Solder)
item number with gtin
70LF2480410 (00670750168116)
product number with gtin
70LF2480410 (00670750168116)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
2" (DN50)
weight
2.75 kg
packaging
carton (1 pce)
color
bronze
materials
bronze (C89836 (lead-free))
finishing
none
shape
straight
connection type
solder, solder
Bore
38.1 mm (No)
max operating pressure liquid
41.37 bar
product group
valves ()
ETIM class
EC011343 Ball valvebrand
Apollo
series
70 Series Ball Valves
type
70LF20X0410
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Bronze
label
Surface protection housing
value
None
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Nominal diameter connection 1
value
DN 50
label
Outer pipe diameter connection 1
value
53.98mm
label
Outer pipe diameter connection 1 (imperial)
value
2.13"
label
Connection 1
value
Soldered sleeve
label
Nominal diameter connection 2
value
DN 50
label
Outer pipe diameter connection 2
value
53.98mm
label
Outer pipe diameter connection 2 (imperial)
value
2.13"
label
Connection 2
value
Soldered sleeve
label
With filter
value
No
label
With thermometer
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
No
label
Length of connection 1
value
81.23mm
label
Length of connection 1 (imperial)
value
3.2"
label
Working length connection 1
value
46.69mm
label
Working length connection 1 (imperial)
value
1.84"
label
Length of connection 2
value
79.45mm
label
Length of connection 2 (imperial)
value
3.13"
label
Working length connection 2
value
45.42mm
label
Working length connection 2 (imperial)
value
1.79"
label
Handle height
value
77.95mm
label
Handle height (imperial)
value
3.07"
label
Handgrip length
value
23.75mm
label
Handgrip length (imperial)
value
0.94"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
