item: 77D14501V

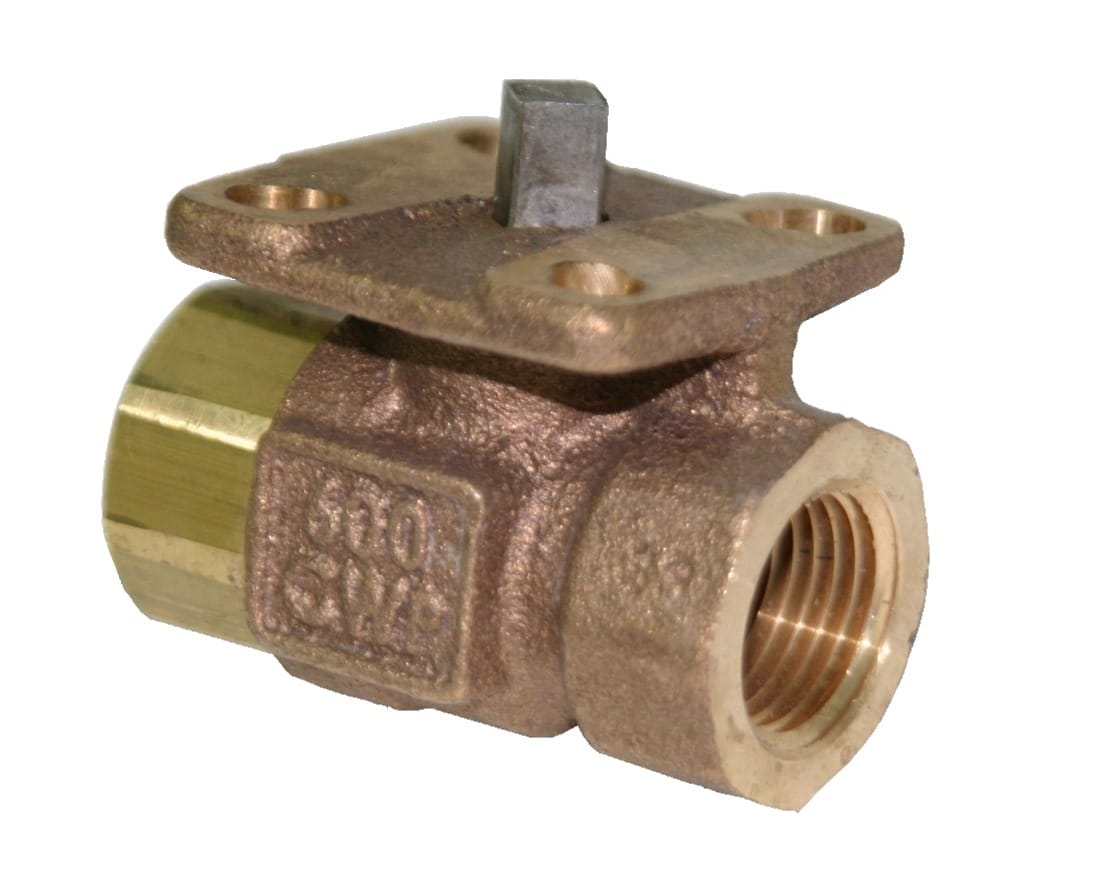

Apollo Valves Full Port, Bronze Ball Valve with an Integral ISO 5211 Mounting Pad
heating
cooling
steam
vacuum
industry
commercial building
no approvals available
label
value
label
d1
value
33.4
label
DN1
value
DN25
label
l1
value
39
label
d2
value
33.4
label
DN2
value
DN25
label
l2
value
39
label
h1
value
13
label
V
value
42
item
Apollo Full Port Bronze 2 Piece Ball Valve with Viton O-Ring 1" (2 x FNPT)
item number with gtin
77D14501V (00670750263750)
product number with gtin
77D14501V (00670750263750)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
item group
77D140X1V 77D140X1V - Apollo Full Port Bronze 2 Piece Ball Valve with Viton O-Ring (2 x FNPT)size
1" (DN25)
weight
0.95 kg
packaging
carton (1 pce)
color
yellow, bronze
materials
bronze (ASTM B584-C84400)
finishing
none
shape
straight
connection type
FPT - female thread conical (NPT), FPT - female thread conical (NPT)
max operating pressure liquid
41.37 bar
product group
valves ()
ETIM class
EC011343 Ball valvebrand
Apollo
series
77D Series Ball Valves
type
77D140X1V
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Bronze
label
Surface protection housing
value
None
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Nominal diameter connection 1
value
DN 25
label
Outer pipe diameter connection 1
value
33.4mm
label
Outer pipe diameter connection 1 (imperial)
value
1.31"
label
Connection 1
value
Internal thread conical (NPT)
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
DN 25
label
Outer pipe diameter connection 2
value
33.4mm
label
Outer pipe diameter connection 2 (imperial)
value
1.31"
label
Connection 2
value
Internal thread conical (NPT)
label
With coupling connection 2
value
No
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Full bore
value
Yes
label
Length of connection 1
value
39.12mm
label
Length of connection 1 (imperial)
value
1.54"
label
Length of connection 2
value
38.86mm
label
Length of connection 2 (imperial)
value
1.53"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
