item: 77W104HCA
no applications available
no solutions available
no approvals available
label
value
label
d1
value
22.4
label
DN1
value
3/4" (DN20)
label
l1
value
48
label
z1
value
26
label
d2
value
22.9
label
DN2
value
3/4" (DN20)
label
l2
value
39
label
z2
value
30
label
M1
value
14
label
M2
value
95
label
E
value
18
label
Y
value
17
label
V
value
32
label
U
value
18
item

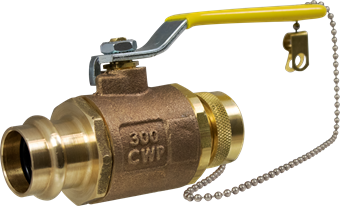

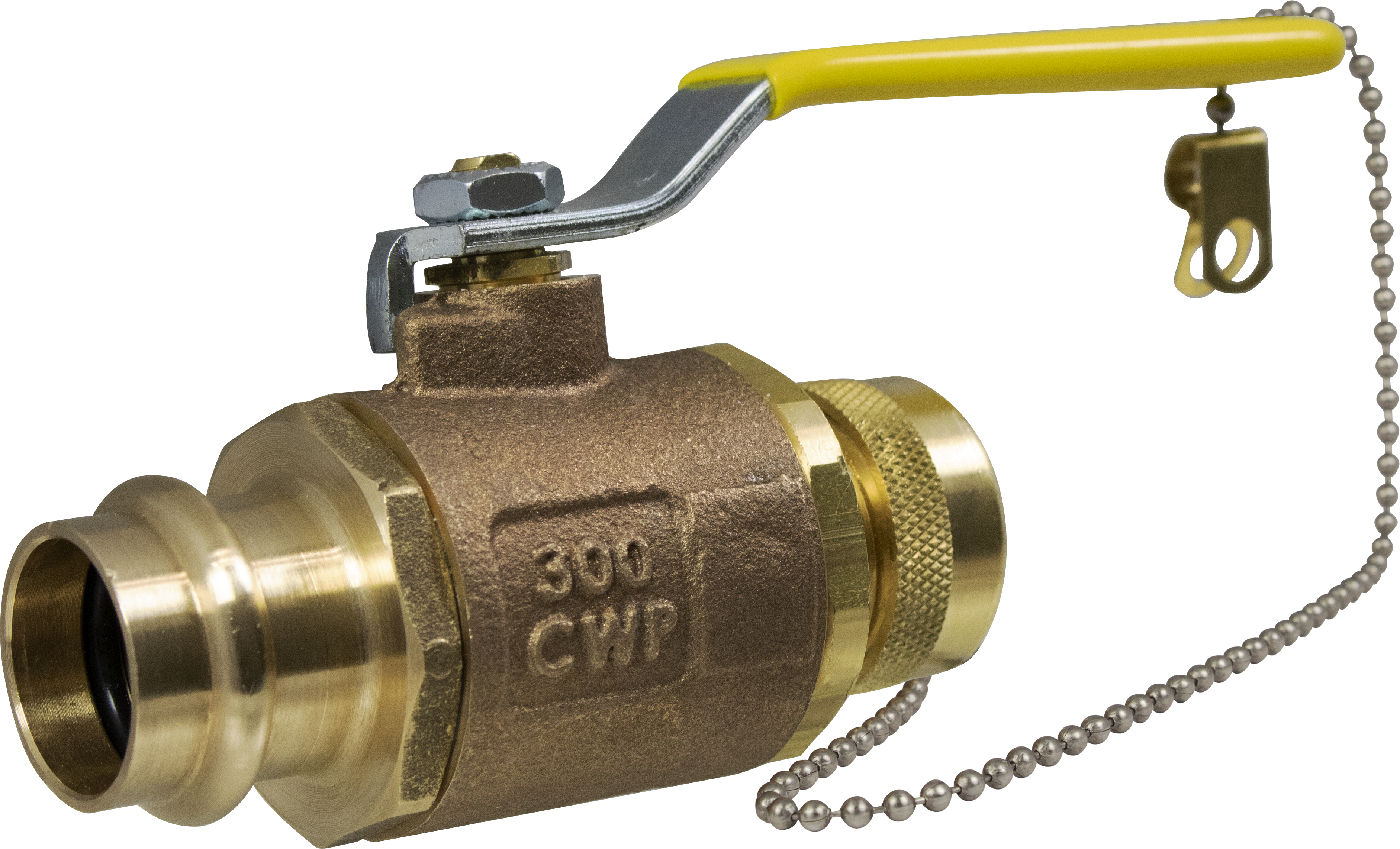

ApolloPress Bronze 2 Piece Full Port Ball Valve with Standard Configuration 3/4" (Press x Hose)
item number with gtin
77W104HCA (00191988005597)
product number with gtin
77W104HCA (00191988005597)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
3/4" (DN20)
weight
0.54 kg
materials
bronze
Bore
19.05 mm (No)
product group
valves ()
ETIM class
EC011343 Ball valvebrand
Apollo
series
77W Series Ball Valves
type
77W10XHCA
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Bronze
label
Nominal diameter connection 1
value
3/4 inch (20)
label
Outer pipe diameter connection 1
value
22.35mm
label
Outer pipe diameter connection 1 (imperial)
value
0.88"
label
Nominal diameter connection 2
value
3/4 inch (20)
label
Outer pipe diameter connection 2
value
22.86mm
label
Outer pipe diameter connection 2 (imperial)
value
0.9"
label
With filter
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
2-part
label
Length of connection 1
value
48.26mm
label
Length of connection 1 (imperial)
value
1.9"
label
Working length connection 1
value
25.91mm
label
Working length connection 1 (imperial)
value
1.02"
label
Length of connection 2
value
39.12mm
label
Length of connection 2 (imperial)
value
1.54"
label
Working length connection 2
value
29.97mm
label
Working length connection 2 (imperial)
value
1.18"
label
Handle height
value
16.81mm
label
Handle height (imperial)
value
0.66"
label
Handgrip length
value
13.97mm
label
Handgrip length (imperial)
value
0.55"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
