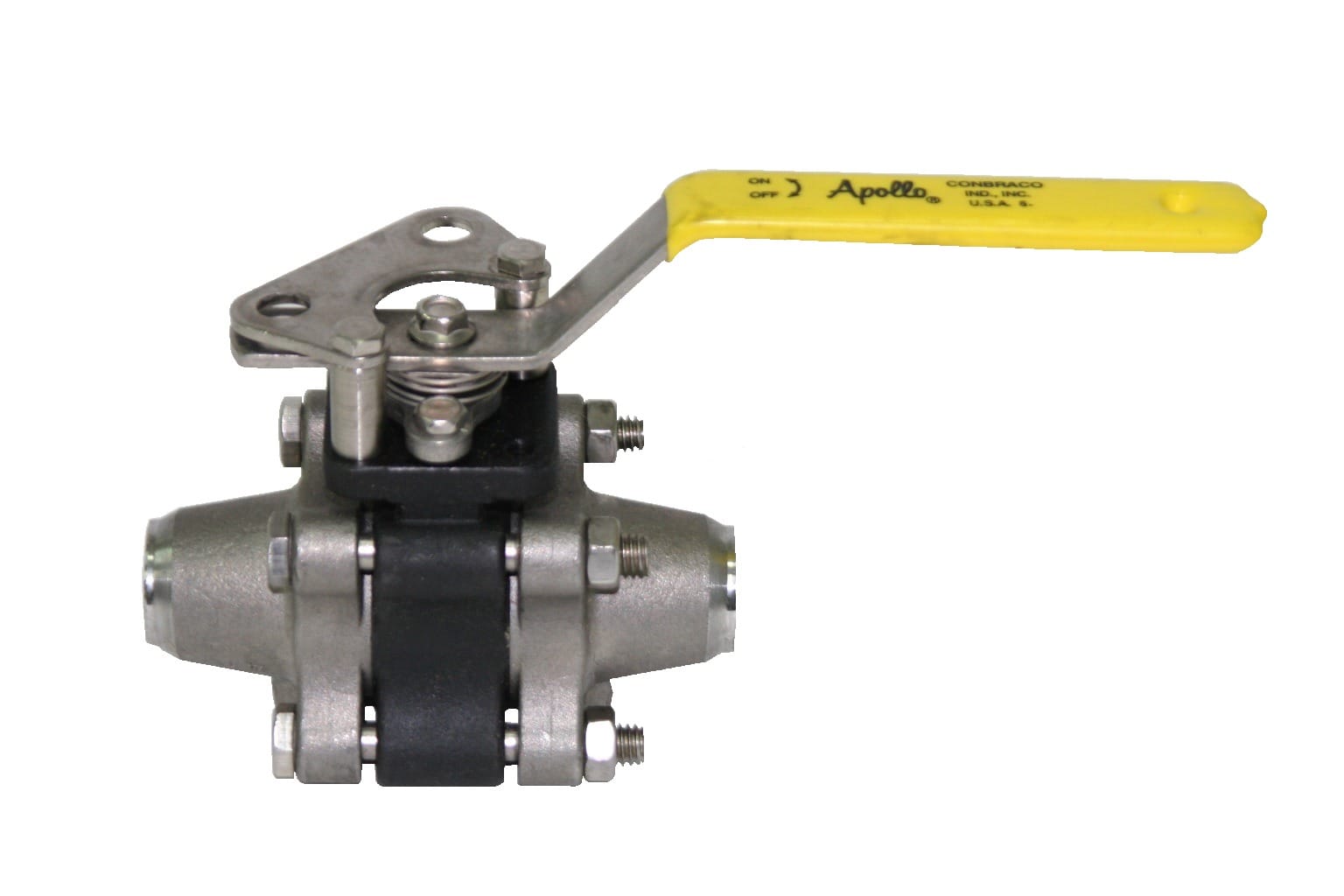

The 83L-340 Carbon Steel 3 Piece Full Port Low Temperature Class 600 Ball Valve sets new standards in durability and efficiency. Its 3-piece construction with enclosed fasteners, full port design, and swing-out center section, ensure top-notch fluid flow even in temperatures as low as -50°F (-46°C). Enhanced safety and functionality are achieved with the pressure balanced solid ball, compression controlled spiral wound gaskets, and the anti-blowout one piece bottom entry stem.

• 3-piece construction w/ enclosed fasteners

• full port

• stainless steel trim & hardware

• swing-out center section

• pressure balanced solid ball

• compression controlled spiral wound gaskets

• anti-blowout one piece bottom entry stem

• statically grounded ball, stem, & body

• rated to -50°F(-46°C)

• 250 psi saturated steam

• CE Marking, 1-1/2” and larger (add “-CE” suffix)

• two-position locking

• adjustable multi-piece PTFE “V” style packing

• fully machined ISO5211 mounting

• cast bosses on the center-section and end caps for bleed & drain ports

• fire safe to API607 (requires -24 suffix)

• vacuum service to 29 in of Hg.
