item: 83R74801

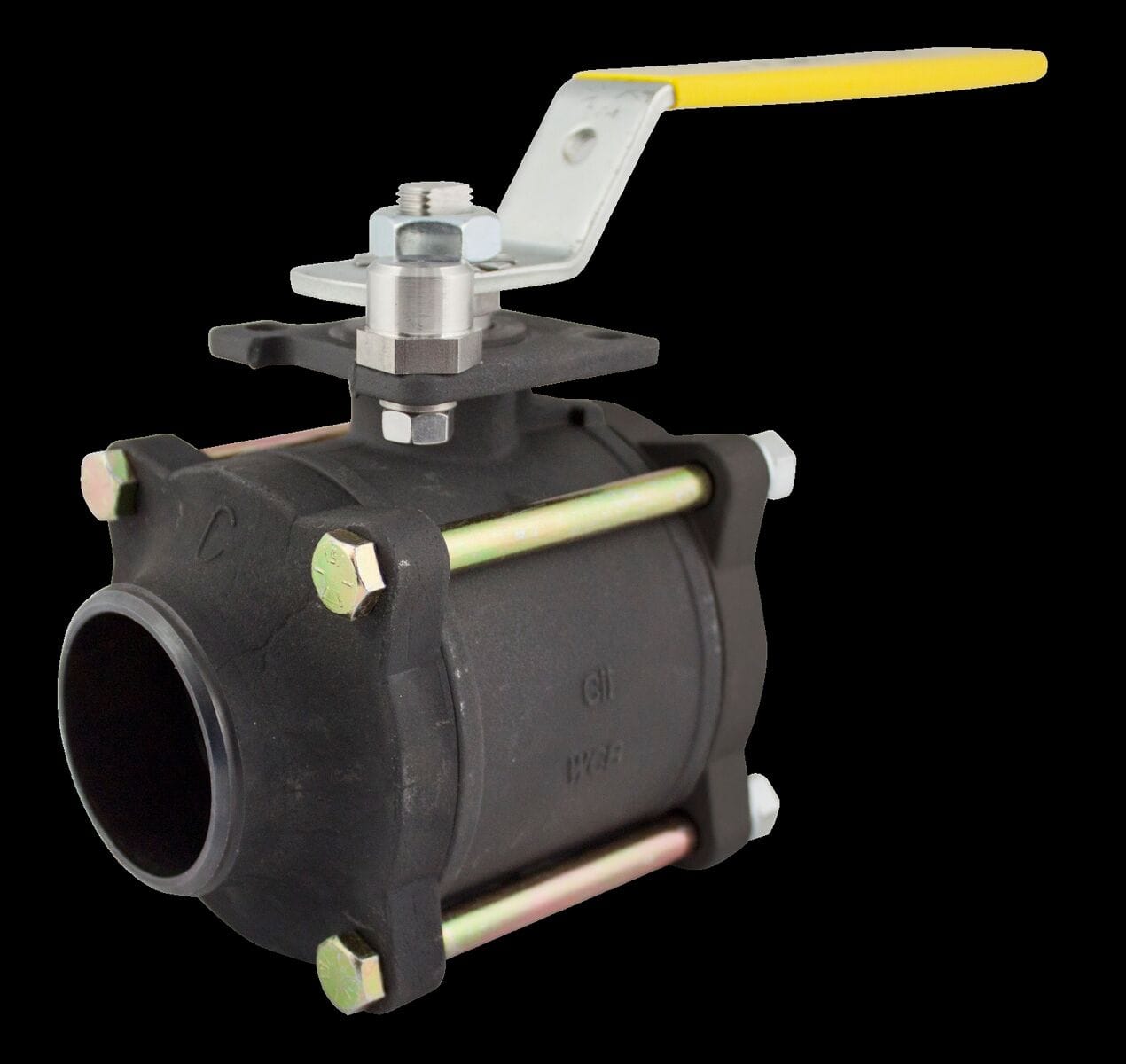

The 83R-740 Carbon Steel 3 Piece Full Port Ball Valve with Actuator Ready ISO Mounting Pad stands out with its advanced design and robust functionality. It integrates an ISO5211 mounting pad, blowout-proof stem design, and in-line repairability for exceptional performance and safety. Reinforced seats, seals, and a full port configuration ensure optimal fluid flow.
• multi-piece packing set
• ISO 5211 mounting pad
• blowout-proof stem design
• in-line repairable
• adjustable packing gland
• investment cast components
• reinforced seat sand seals
• full port configuration
no applications available
industry
commercial building
no approvals available
item
Apollo Carbon Steel 3 Piece Full Port Ball Valve with Actuator Ready ISO Mounting Pad, Standard Configuration 2" (2 x Sch 40 Butt-Weld)
item number with gtin
83R74801 (00670750253867)
product number with gtin
83R74801 (00670750253867)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
size
2" (DN50)
weight
5.67 kg
dimensions
271x68x144 mm
packaging
carton (1 pce)
materials
steel
shape
straight
connection type
butt Weld, butt Weld
product group
valves ()
ETIM class
EC011343 Ball valvebrand
Apollo
series
83R Series Ball Valves
type
83R74X01
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Steel
label
With filter
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
3-part
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
