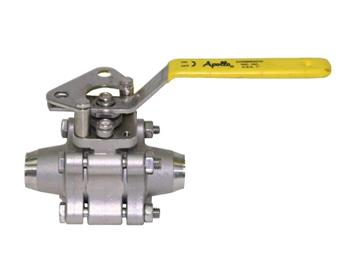

Apollo Stainless Steel 3 Piece Full Port Ball Valve with SS Locking Round Handle 3/4" (2 x Sch. 80 Butt-Weld)

group: 86B60X15

item: 86B60415

The 86B-600 Stainless Steel 3 Piece Full Port Ball Valve is a reliable and efficient solution for fluid control applications. With its sturdy 3-piece construction featuring enclosed fasteners, this valve ensures long-lasting durability. The full port design, swing-out center section, and pressure balanced solid ball guarantee optimal fluid flow, while features like compression controlled spiral wound gaskets and anti-blowout one piece bottom entry stem enhance safety and performance.



• 3-piece construction w/ enclosed fasteners

• full port

• stainless steel trim & hardware

• swing-out center section

• pressure balanced solid ball

• compression controlled spiral wound gaskets

• anti-blowout one piece bottom entry stem

• statically grounded ball, stem, & body

• two-position locking

• adjustable multi-piece PTFE “V” style packing

• fully machined ISO5211 mounting

• cast bosses on the center-section and end caps for bleed & drain ports

• fire safe to API607 (requires -24 suffix)

• vacuum service to 29 in of Hg.

• CE Marking, 1-1/2” and larger (add “-CE” suffix)

• 250 psi saturated steam

• CGA 3.16-M88(2014)

read more
read less

applications

natural gas

natural gas

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

characteristics

color

silver, yellow

materials

stainless steel (ASTM A351 CF8M)

finishing

none

shape

straight

connection type

butt Weld, butt weld

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86B Series Ball Valves

type

86B60X15

UNSPS

40141607

product info

item

Apollo Stainless Steel 3 Piece Full Port Ball Valve with SS Locking Round Handle 3/4" (2 x Sch. 80 Butt-Weld)

item number with gtin

86B60415 (00670750766107)

product number with gtin

86B60415 (00670750766107)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86B60X15 - Apollo Stainless Steel 3 Piece Full Port Ball Valve with SS Locking Round Handle (2 x Sch. 80 Butt-Weld)

weight

4.18 lb

packaging

carton (1 pce)

label

value

label

DN1

value

DN20

label

DN2

value

DN20

drawing for product

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

Surface protection housing

value

None

label

Material ball

value

Stainless steel

label

Material spindle

value

Stainless steel

label

Material primary spindle seal

value

Polytetrafluoroethylene (PTFE)

label

Nominal diameter connection 1

value

DN 20

label

Nominal diameter connection 2

value

DN 20

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

Full bore

value

Yes

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
