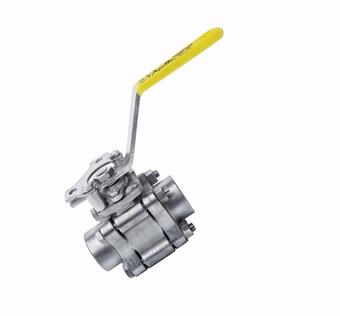

Apollo Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve with Graphite Packing, Spiral Wound Graphite Body Seal, PEEK/PTFE Bearing 1" (FNPT x Socket Weld)

item: 86C1052463

The 86C-100 Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve is a versatile and reliable solution designed to withstand challenging environments. Its 3-piece construction with enclosed fasteners ensures durability, while the full port and swing-out center section optimize fluid flow. With features such as pressure balanced solid ball, compression controlled spiral wound gaskets, and anti-blowout one piece bottom entry stem, this valve offers enhanced safety and performance.



• 3-piececonstruction w/ enclosed fasteners

• full port

• stainless steel trim & hardware

• swing-out center section

• pressure balanced solid ball

• compression controlled spiral wound gaskets

• anti-blowout one piece bottom entry stem

• statically grounded ball, stem, & body

• two-position locking

• adjustable multi-piece PTFE “V” style packing

• fully machined ISO5211 mounting

• cast bosses on the center-section and end caps for bleed & drain ports

• vacuum service to 29 in of Hg.

• CE Marking, 1-1/4” and larger (add “-CE” suffix)

• 250 psi saturated steam

• fire safe “by design” (requires -24 suffix)


read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

no solutions available

approvals

CRN

CRN

characteristics

materials

stainless steel

connection type

FPT - female thread conical (NPT), weld

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86C Series Ball Valves

type

86C10X2463

product info

item

Apollo Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve with Graphite Packing, Spiral Wound Graphite Body Seal, PEEK/PTFE Bearing 1" (FNPT x Socket Weld)

item number with gtin

86C1052463 (00670750776731)

product number with gtin

86C1052463 (00670750776731)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86C10X2463 - Apollo Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve with Graphite Packing, Spiral Wound Graphite Body Seal, PEEK/PTFE Bearing (FNPT x Socket Weld)

size

1" (DN25)

weight

5.7 lb

image for 86C-100 Image

image | png

86C-100 Image

certifications | pdf

CRN_0C10908_ADD7

image for 86C-100 Diagram

diagram | png

86C-100 Diagram

submittal sheet | pdf

86C-100 Submittal Sheet

Other Attachments | pdf

86C Series Kit Listing

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

Connection 1

value

Internal thread conical (NPT)

label

Connection 2

value

Welded end

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
