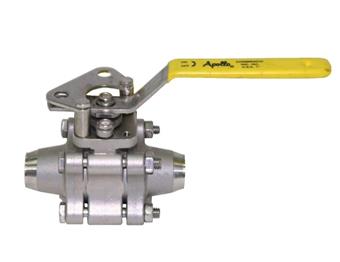

Apollo Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve with Standard Configuration 1" (2 x Sch. 40 Butt-Weld)

group: 86C50X01

item: 86C50501

The 86C-500 Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve is a versatile and reliable solution for demanding applications. With its 3-piece construction and enclosed fasteners, this valve ensures durability and long-lasting performance. The full port design, swing-out center section, and pressure balanced solid ball enable efficient fluid flow, while features such as compression controlled spiral wound gaskets and anti-blowout one piece bottom entry stem enhance safety and reliability.



• 3-piece construction w/ enclosed fasteners

• full port

• stainless steel trim & hardware

• swing-out center section

• pressure balanced solid ball

• compression controlled spiral wound gaskets

• anti-blowout one piece bottom entry stem

• statically grounded ball, stem, & body

• two-position locking

• adjustable multi-piece PTFE “V” style packing

• fully machined ISO5211 mounting

• cast bosses on the center-section and end caps for bleed & drain ports
• fire safe “by design” (requires -24 suffix)

• vacuum service to 29 in of Hg.

• CE Marking, 1-1/2” and larger (add “-CE” suffix)

• 250 psi saturated steam

read more
read less

applications

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

characteristics

materials

stainless steel

shape

straight

connection type

butt Weld, butt weld

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86C Series Ball Valves

type

86C50X01

UNSPS

40141607

product info

item

Apollo Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve with Standard Configuration 1" (2 x Sch. 40 Butt-Weld)

item number with gtin

86C50501 (00670750040931)

product number with gtin

86C50501 (00670750040931)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86C50X01 - Apollo Stainless Steel, Alloy 20, 3 Piece Full Port Ball Valve with Standard Configuration (2 x Sch. 40 Butt-Weld)

size

1" (DN25)

weight

5.7 lb

dimensions

9x4x7 "

packaging

carton (1 pce)

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
