Apollo Stainless Steel 3 Piece Full Port Class 600 Ball Valve with Standard Configuration 1/2" (2 x Sch 80 Butt Weld)

item: 86G60301

The 86G-600 Stainless Steel 3 Piece Full Port Class 600 Ball Valve is a robust and versatile solution, designed for effective fluid control. Its architecture boasts a swing-out center section and a pressure balanced solid ball, thereby ensuring exceptional performance. Safety and reliability are emphasized with features like compression controlled RPTFE gaskets and an anti-blowout one piece bottom entry stem.



• 3-piece construction w/ enclosed fasteners

• Full port

• Stainless steel trim & hardware

• Swing-out center section

• Pressure balanced solid ball

• Compression controlled RPTFE gaskets

• Anti-blowout one piece bottom entry stem

• Two-position locking

• Adjustable multi-piece PTFE “V” style packing

• Fully machined ISO5211 mounting

• Cast bosses on the center-section and end caps for bleed & drain ports

• Vacuum service to 29 in of Hg.

• 150 psi saturated steam

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

no solutions available

approvals

CRN

CRN

characteristics

materials

stainless steel

connection type

butt Weld, butt weld

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86G Series Ball Valves

type

86G60X01

product info

item

Apollo Stainless Steel 3 Piece Full Port Class 600 Ball Valve with Standard Configuration 1/2" (2 x Sch 80 Butt Weld)

item number with gtin

86G60301 (00191988118037)

product number with gtin

86G60301 (00191988118037)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86G60X01 - Apollo Stainless Steel 3 Piece Full Port Class 600 Ball Valve with Standard Configuration (2 x Sch 80 Butt Weld)

weight

1.04 kg

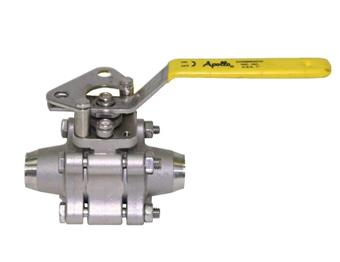

image for 86G-600

image | png

86G-600

certifications | pdf

CRN_0C10908_ADD7

image for 86G-600 Diagram

diagram | png

86G-600 Diagram

submittal sheet | pdf

86G-600 Submittal Sheet

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
