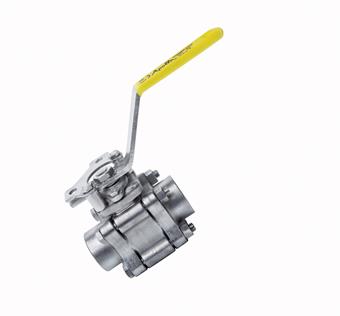

Apollo Super Duplex Stainless Steel 3 Piece Full Port Ball Valve with Standard Configuration 1/2" (2 x FNPT)

item: 86K10301

The 86K-100 Super Duplex Stainless Steel 3 Piece Full Port Ball Valve is a highly resilient and advanced solution tailored for controlling fluid flow. The swing-out center section and a pressure balanced solid ball design ensure top-notch operational efficiency. Key safety features such as compression controlled spiral wound gaskets and an anti-blowout one piece bottom entry stem, along with static grounding of the ball, stem, and body, reinforce its reliability.



• 3-piece construction w/ enclosed fasteners

• Full port

• Stainless steel trim & hardware

• Swing-out center section

• Pressure balanced solid ball

• Compression controlled spiral wound gaskets

• Anti-blowout one piece bottom entry stem

• Statically grounded ball, stem, & body

• Two-position locking

• Adjustable multi-piece PTFE “V” style packing

• Fully machined ISO5211 mounting

• Cast bosses on the center-section and end caps for bleed & drain ports

• Fire safe “by design” (requires -24 suffix)

• Vacuum service to 29 in of Hg.

• CE Marking, 1-1/4” and larger (add “-CE” suffix)

• 250 psi saturated steam

read more
read less

applications

no applications available

segments

no solutions available

approvals

CRN

CRN

characteristics

materials

stainless steel

connection type

FPT - female thread conical (NPT)

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Apollo

series

86K Series Ball Valves

type

86K10X01

product info

item

Apollo Super Duplex Stainless Steel 3 Piece Full Port Ball Valve with Standard Configuration 1/2" (2 x FNPT)

item number with gtin

86K10301 (00670750127632)

product number with gtin

86K10301 (00670750127632)

manufacturer

Aalberts integrated piping systems Americas, Inc. (Apollo)

item group

86K10X01 - Apollo Super Duplex Stainless Steel 3 Piece Full Port Ball Valve with Standard Configuration (2 x FNPT)

size

1/2" (DN15)

weight

2.3 lb

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

Connection 1

value

Internal thread conical (NPT)

label

Connection 2

value

Internal thread conical (NPT)

label

With filter

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

3-part

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
