item: 86K20401

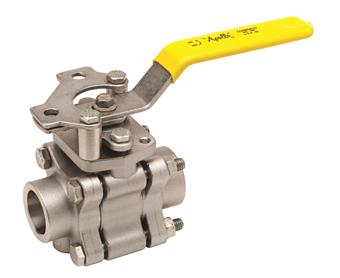

The 86K-200 Super Duplex Stainless Steel 3 Piece Full Port Ball Valve stands out as a top-grade solution adept at managing fluid flow. It includes a swing-out center section and a pressure balanced solid ball design, ensuring excellent operational performance. Safety features like compression controlled spiral wound gaskets, anti-blowout one piece bottom entry stem, and static grounding for ball, stem, and body enhance its robustness and reliability.
• 3-piece construction w/ enclosed fasteners
• Full port
• Stainless steel trim & hardware
• Swing-out center section
• Pressure balanced solid ball
• Compression controlled spiral wound gaskets
• Anti-blowout one piece bottom entry stem
• Statically grounded ball, stem, & body
• Two-position locking
• Adjustable multi-piece PTFE “V” style packing
• Fully machined ISO5211 mounting
• Cast bosses on the center-section and end caps for bleed & drain ports
• Fire safe “by design” (requires -24 suffix
• Vacuum service to 29 in of Hg.
• CE Marking, 1-1/4” and larger (add “-CE” suffix)
• 250 psi saturatedsteam
no applications available
no solutions available
CRN
materials
stainless steel
connection type
weld
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
brand
Apollo
series
86K Series Ball Valves
type
86K20X01
item
Apollo Super Duplex Stainless Steel 3 Piece Full Port Ball Valve with Standard Configuration 3/4" (2 x Socket Weld)
item number with gtin
86K20401 (00670750621512)
product number with gtin
86K20401 (00670750621512)
manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)
item group
86K20X01 - Apollo Super Duplex Stainless Steel 3 Piece Full Port Ball Valve with Standard Configuration (2 x Socket Weld)
size
3/4" (DN20)
weight
4 lb
label
value
label
ETIM class
value
label
Housing material
value
Stainless steel
label
Connection 1
value
Welded end
label
Connection 2
value
Welded end
label
With filter
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
3-part
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
